17mm camera diameter and 2.4" Color TFT LCD Monitor

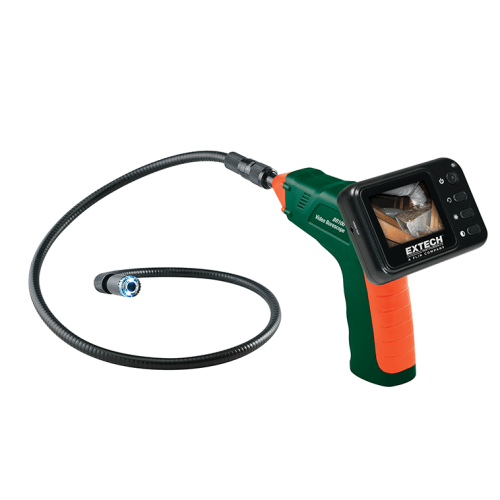

Video Borescope Inspection Camera with 17mm camera diameter and 2.4 inch color TFT LCD Monitor is ideal for Home Inspection (Inspect in walls for mold, insect infestation, electrical wire or water pipe location); HVAC ( Inspect inside ducts, behind motors and compressors); Automotive (View inside or around engines and transmissions); Industrial (Inspect weld integrity, process equipment, gears, molding machines); Aerospace (Aircraft inspections for contamination, debris, cracks or other damage), and Government (Safety and security inspections) Applications. Glare-free close-up field of view. Display detaches for easy storage. Complete with 4 x AA batteries, extension tools (mirror, hook, magnet), video output jack, and hard case.

  Video Borescope Inspection Camera Features:

• 17mm diameter camera head with 39" (1m) flexible gooseneck cable retains configured shape
• Mini water-proof (IP67) camera head for high resolution viewing
• Two bright LED lamps with dimmer to illuminate viewed object
• Glare-free close-up field of view
• Display detaches for easy storage
• Optional BR200-EXT extension cable available for increasing viewing depth (maximum 2 extension cables can be connected to the borescope)
• Complete with 4 AA batteries, extension tools (mirror, hook, magnet), video output jack, and hard case

Specifications                                                  Range
Camera
Viewing direction                                  Viewing Angle 50°
Focus distance from object                 5.9" to 9.8" (15 to 25cm)
Shaft diameter                                       0.67" (17mm)
Working length                                      39" (1m)
Minimum bend radius                          2.36" (60mm)
Handle Dimensions                               7.3 x 5.7 x 1.6" (186 x 145 x 41mm)
Weight                                                   18.7oz (530g)
Monitor
LCD Screen Type                                 2.4" TFT
Pixels                                                    480 x 234
Monitor Dimensions                         3.9 x 2.7 x 1.8" (100 x 70 x 30mm)
Operating                                            1.5 hours
Weight                                                 4.9oz (140g)
