9mm camera diameter and 2.4" Color LCD Monitor

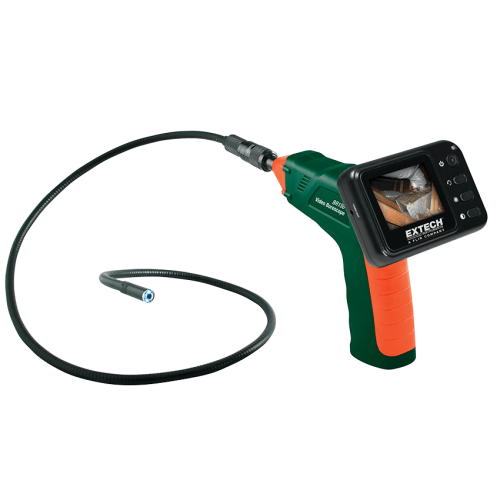

The BR150 Video Borescope features a 2.4 in. color TFT LCD Monitor and a mini water-proof (IP67) 9 mm camera head with a dual light system for high resolution, glare-free, close-up viewing. Gooseneck cable retains configured shape. Detachable display for easy storage. Comes with 4 AA batteries, extension tools (mirror, hook, and magnet), video output jack, and hard case.

Video Borescope Inspection Camera Features:

• 39" (1m) flexible gooseneck with waterproof camera (9mm diameter) and 4 built-in bright LED lights for illuminating dark areas
• Gooseneck cable retains configured shape
• Detachable display for easy storage
• Complete with 9mm camera head with cable, 4 AA batteries, extension tools (mirror, hook, magnet), video output cable, and hard carrying case

 Specifications                                                          Range
Camera Viewing direction                                 Viewing Angle 45°
Focus distance from object                               5.9" to 9.8" (15 to 25cm)
Camera Shaft diameter / Cable Length         0.35" (9mm) diameter / 39” (1m) cable
Minimum bend radius                                        2.36" (60mm)
LCD Screen Type / Pixels                                   2.4" TFT / 480 x 234 pixels
Monitor Operating                                              1.5 hours
Dimensions/Weight                                            Handle: 7.3x5.7x1.6” (186x145x41mm)/18.7oz (530g); Monitor: 3.9x2.8x1.2” (100x70x30mm)/4.9oz (140g)
