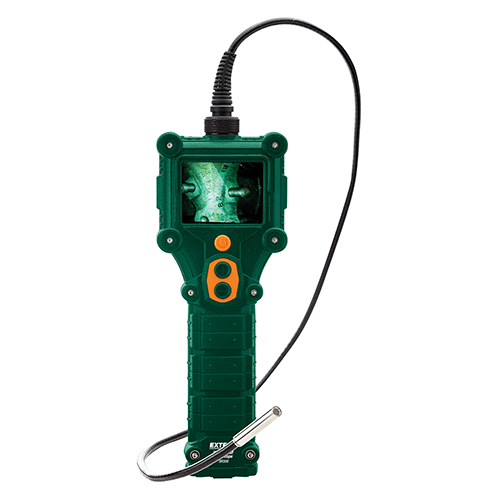

Waterproof Video Borescope Inspection Camera

8mm camera diameter and 2.7" Color TFT LCD Monitor

  Waterproof Video Borescope Inspection Camera Features

• 8mm diameter camera head with 4 built-in bright LED lamps for dimly lit areas
• Handheld design for quick, easy, on-the-spot viewing in small openings
• Completely submersible in water down to 1 meter for 1 hour
• Non-detachable waterproof 39" (1m) flexible gooseneck cable retains configured shape
• 2.7" (68mm) color TFT LCD monitor for detailed images
• 2x digital zoom for close-up viewing
• Low battery indicator
• Complete with camera probe and 39" (1m) flexible cable, 4 AA batteries, and hard case

Specifications                                                                  Range
Camera Shaft Diameter / Cable Length          0.31" (8mm) diameter / 39" (1m) cable
Focus Distance from Object                              0.8 to 2.75" (2 to 7cm)
LED lamps                                                             4 LEDs with dimmer
Camera Viewing Direction                                Viewing Angle 60°
Minimum Bend Radius                                      1.2" (30mm)
Camera resolution                                              640 x 480 pixels
Camera Zoom                                                      2x Digital
LCD Screen Type / Pixels                                   2.7" (68mm) color TFT / 960 x 240 pixels
Waterproof                                                         IP67 rating (1 meter for 30 minutes)
Battery life (continuous use)                           Approx 3-4 hours
Dimensions/Weight (w/o batteries)              9.8x3.7x1.7" (249x94x43mm) /13.4oz (380g)
