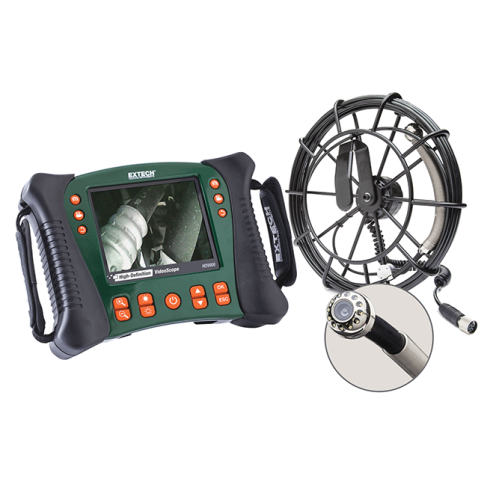

Inspection Camera with 25mm camera head, 60° FOV/Long Depth of Field Probe (10m)The Extech's HDV650-10G Plumbing Videoscope Kit unveils problems with its large, waterproof, rugged, high definition color display and a 10 meter snake probe with 25 mm diameter camera head. The Extech HDV65010G has a built-in bright lights which help illuminate the problem area deep within the pipelines. The camera probe is rugged enough to dislodge small clogs. The Extech HDV650 10G is ideal for inspecting P-traps, 90s, drains, pipeline runs, and more. Complete with VideoScope, 25mm camera probe, SD card, 3.7V rechargeable battery, patch cable, AC adapter (110-240V, four plugs), USB and AV cables, and hard carrying case.

HD VideoScope Plumbing Kit with 10m Probe Features:

• Includes flexible, fiberglass core, 10m waterproof camera probe (spool assembly)
• 25mm camera head (60° FOV, long depth of field) with built-in bright 12 LEDs for illuminating the problem areas
• 5.7" color LCD TFT with high definition 640 x 480 VGA pixel resolution
• Rugged oil/chemical resistant and water/drop proof housing (IP67)
• Non-slip ergonomic handles for ambidextrous use
• SD memory card included to store >15,000 images
• Video recording (up to 4 hours) with Voice annotation
• AV output for viewing images and video directly on a monitor
• Video and images can be transferred to a PC via the SD card (included) or USB output
• Complete with VideoScope, 25mm camera probe, SD card, 3.7V rechargeable battery, patch cable, AC adapter (110-240V, four plugs), USB and AV cables, and hard carrying case.

Specifications                                                 Range
Camera
Minimum Focus distance                     2.36" (60mm)
Field of View                                            65°
Shaft diameter                                       0.98" (25mm)
Working length                                      32.8ft (10m) or 98.4ft (30m)

Borescope:
*LCD Color TFT Display                      5.7" (14.5cm) size; 5.3” (13.5cm) viewable
Pixels                                                       640 x 480 VGA pixel resolution
Frame Rate                                            30 fps frame rate (NTSC & PAL)
Operating                                              up to 4 hours AVI video
