Benchtop meter provides resolution down to 0.01mΩ

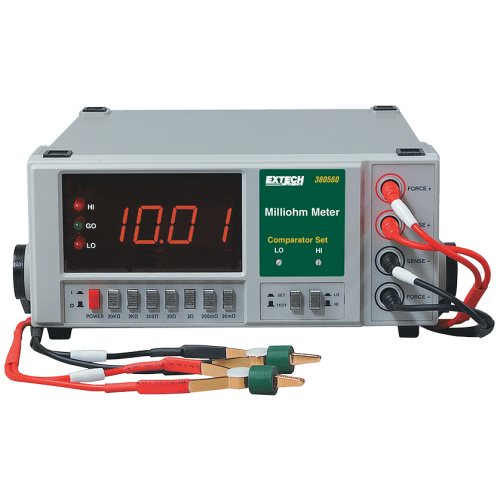

Compact and precise, the Extech 380562 Milliohm Meter has 7 ranges and measures down to 0.01mΩ using 4-wire Kelvin clip test leads. Measurements are displayed on the unit's large 0.8", 1999-count LCD. Built-in comparator for Hi/Lo/Go resistance testing or selection. Complete with 4-wire cables with Kelvin clip connectors and power cord.

High Resolution Precision Milliohm Meter (220VAC) Features:

• 7 ranges for wide low resistance measurements
• High resolution to 0.01mOhm
• 1999 count display with 0.8" digits
• 4-wire test cable with Kelvin clip connectors
• Automatic zero
• Built-in comparator for Hi/Lo/Go resistance testing or selection

Specifications            Range
Resistance                   200m
                                      2000m
                                      20
                                      200
                                     2k
Power                          110VAC, 60Hz or 220VAC 50Hz
Dimensions                6.3 x 2.8 x 3.4” (160 x 120 x 85mm)
