Dual Measurement Scale LCD Display with Bargraph

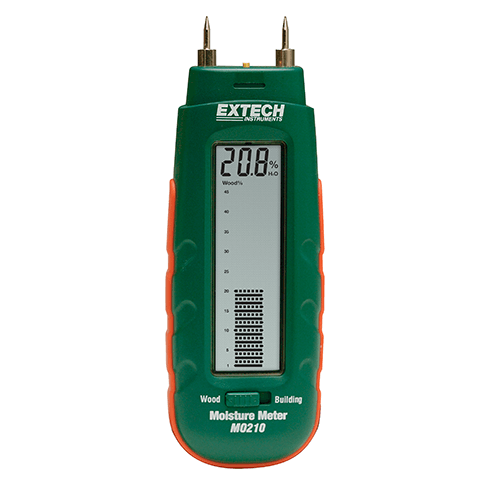

This Pocket Moisture Meter from Extech allows you to quickly assess whether wood and other porous materials have endured any water incursion. Simply push the sharply pointed electrode pins into the surface of sheetrock, drywall, wallboard, concrete, mortar, plaster or other building materials and the device will detect moisture levels between 0.2% to 2.4%. Slide the material-selection switch to wood and the handheld meter will determine moisture presence in timber from 6% to 44%. Complete with protective cap, replacement pins, and three CR-2032 button batteries.

Pocket Moisture Meter Features:

• Use on wall board, sheet rock, cardboard, plaster, concrete, and mortar
• Replaceable threaded measurement electrode pins
• Self-contained, pocket sized meter with belt clip

Specifications                             Range
Wood Moisture Range           6 to 44%
Basic Accuracy                          ±1%
Other Building Materials        0.2 to 2.0%
Basic Accuracy                          ±0.1%
Measurement principle          Electrical resistance
Electrode length                      0.3" (8mm)
Electrode pins                          Integrated, replaceable
Auto Power Off                        After approx. 15 minutes
Operating Temperature         32 to 104°F (0 to 40°C)
Operating Humidity                 85% Relative Humidity maximum
Power supply                           Three CR-2032 button cells
Dimensions                               5.1 x 1.6 x 1.0" (130 x 40 x 25mm)
Weight                                       3.5 oz (100g)
