Measures the freezing point of coolants and concentration of Ethylene/Propylene Glycol

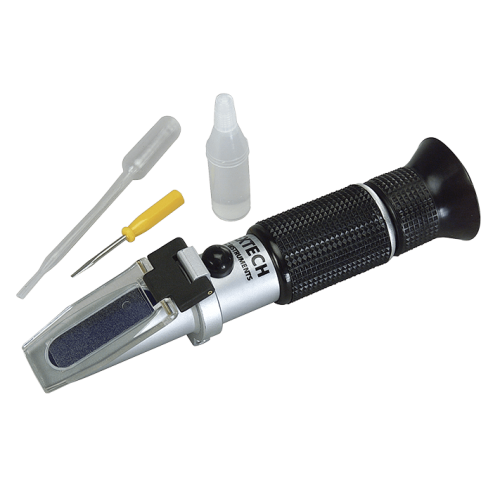

This portable battery coolant/glycol Refractometer is easy to operate refract meters provide accurate and repeatable measurements on easy to read scales. The RF40 measures the freezing point of automotive coolants (propylene glycol and ethylene glycol) and indicates the specific gravity of battery acid and provides a quick reference of battery charge condition. Complete with one year warranty, case, calibration screwdriver, plastic pipette and calibration solution.

Portable Battery Coolant/Glycol Refractometer with ATC (°F) Features:

• Measures -60 to 32°F Propylene/Ethylene Glycol freeze point and 1.15 to 1.30 Specific Gravity of Battery Acid
• Automatic Temperature Compensation (ATC)
• Requires only 2 or 3 drops of solution
• The prism and lens with a simple focus adjustment
• Complete with case, calibration screwdriver, plastic pipette and calibration solution

Specification                                        Range

RF40     Coolant (ATC)            -60 to 32°F Propylene Glycol freeze point               2°F ±2%
                                                    -60 to 25°F Ethylene Glycol freeze point                  2°F ±2%
                                                    1.15 to 1.30 Specific Gravity of Battery Acid           0.01
