Temperature datalogger compatible with 7 types of thermocouples:

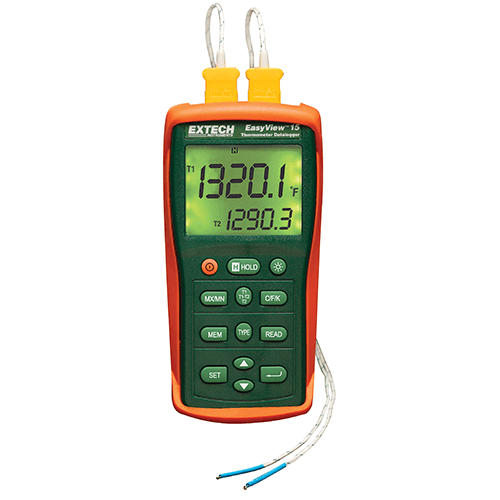

EA15 is an EasyView Dual Input Temperature Datalogger capable of-200 Degrees to 1999 Degrees Fahrenheit and -200 Degree to 1360 Degree Celsius measurements. Timer function displays elapsed time plus the time when minimum and maximum readings are taken. Records Max/Min readings for later recall. Built-in datalogger stores up to 8800 data sets. Complete with built-in stand, protective holster, two Type K bead wire temperature probes and batteries.

• Dual input thermometer accepts Types J, K, E, T, R, S, and N thermocouples
• Built-in datalogger stores up to 8800 data sets
• RS-232 port to transfer data to PC for analysis (PC software and cable included)
• Compact and rugged design features large backlit display
• Displays [T1 plus T2] or [T1-T2 plus T1] or [T1-T2 plus T2]
• Timer function displays elapsed time plus the time when MIN and MAX readings are taken
• Records Max/Min readings for later recall
• Includes Windows® compatible software and data cable
• Complete with built-in stand, protective holster, two Type K bead wire temperature probes and batteries

Specifications                                      Range
Temperature (Type K)                  -58 to 1999°F (-50 to 1300°C)
Basic Accuracy                                ±(0.3%rdg +2°F); ±(0.3%rdg +1°C)
Resolution                                       0.1°/1°
Memory                                           Manual store/recall up to 150 readings
Dimensions                                      5.9 x 2.8 x 1.3" (150 x 72 x 35mm)
Weight                                             8.3oz (235g)
