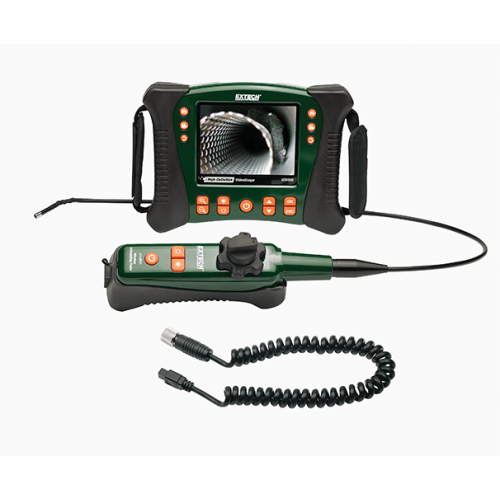

Inspection Camera with Wireless Handset & 6mm Semi-Rigid, Articulating (240°) Probe (1m)The HDV640W is am Inspection Camera with Wireless Handset and 6mm Semi-Rigid, Articulating (320-Degree) Probe (1m). Includes wireless handset with nondetachable 6 mm semi-rigid probe with macro lens. The wireless transmitter allows the user to transmit video up to 100 ft. (30 m) from the measurement point to your monitor. Articulating probe tip adjusts up to 320-Degree viewing angle. The 5.7 in. color LCD TFT features a high definition 640 x 480 resolution. Compact, high-resolution water-proof camera probe. Camera head with four built-in bright LED lamps with dimmer to illuminate objects. Glare-free close-up field of view. The SD memory card included stores more than 14,600 images. Video recording (up to 4 hours) with voice annotation. AV output for viewing images and video directly on a monitor. Video and images can be transferred to a PC via the SD card or USB output. Includes SD card, 3.7-Volt rechargeable Li-Polymer battery, patch cable, AC adaptor, USB and AV cables, camera probe, and hard carrying case.

  HD VideoScope Kit with Wireless Handset/Articulating Probe Features:

• Includes wireless handset with nondetachable 6mm semi-rigid probe (1m) with macro lens
• Wireless transmitter allows to transmit video up to 100ft (30m) from the measurement point to your monitor
• Articulating probe tip adjusts up to 240? viewing angle
• 5.7" color LCD TFT with high definition 640 x 480 VGA pixel resolution
• Compact, high-resolution water-proof camera probe
• Camera head with four built-in bright LED lamps with dimmer to illuminate viewed object
• Glare-free close-up field of view
• SD memory card included to store more than 15,000 images
• Video recording (up to 4 hours) with voice annotation
• AV output for viewing images and video directly on a monitor
• Video and images can be transferred to a PC via the SD card or USB output
• Includes HDV600 videoscope, wireless handset with articulating probe, SD card, 3.7V rechargable Li-Polymer battery, patch cable, 100/240V AC adaptor, USB and AV cables, and carrying case

Specifications                                   Range
Camera
Minimum Focus distance                   2.36" (60mm); macro: 0.59” (15mm)
Field of View                                          65°
Shaft diameter                                     0.24" (6mm)
Working length                                     39" (1m)
Camera Tip bending                           240° (120° left, 120° right)

Borescope:

*LCD Color TFT Display                      5.7" (14.5cm) size;
                                                                  5.3" (13.5cm) viewable
Pixels                                                       640 x 480 VGA pixel resolution
                                                                (320 x 240 for 4mm camera)
Frame Rate                                            30 fps frame rate (NTSC & PAL)
SD Card                                                  2GB SD memory card included
                                                                  (supports up to 32GB SD storag
Operation                                               up to 4 hours AVI video
