60° FOV / Macro lens and 1m Flexible Cable

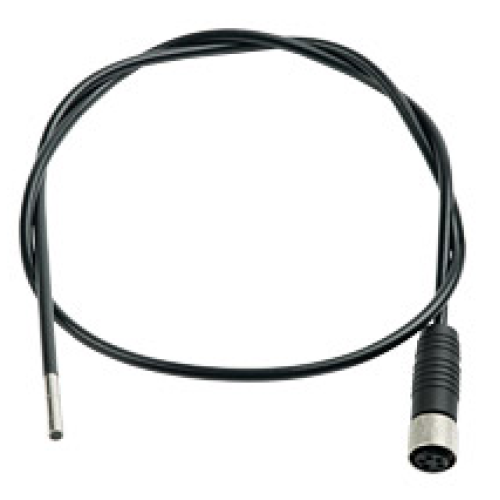

The HDV5-6CAM-1AFM is an optional camera for use with the HDV500 VideoScope series. This 6mm Camera head with a Macro lens, features a 60° field of view. One meter semi-rigid cable length. Minimum focus distance at 0.79 in. (2cm).
| Measuring Range | |
| Measuring Range | Specifications Range Resolution 640 x 480 pixels Length 1m (3.3’) Outer diameter (O.D.) 6mm (0.24”) Focal distance 2 to 6cm (0.79 to 2.36”) Housing material Stainless steel Field of View 60º Camera probe bend radius 240º Camera lamps Four (4) LED; 3500 Lux (at 20mm) maximum output Operating/Storage Temperature ‐20 to 70°C (‐4 to 158°F) Warranty One Year Limited Warranty |
Extech HDV5-6CAM-1AFM 6MM VideoScope Camera Head
- Brand: Extech Instruments by FLIR
- Product Code: HDV5-6CAM-1AFM
- Availability: In Stock
