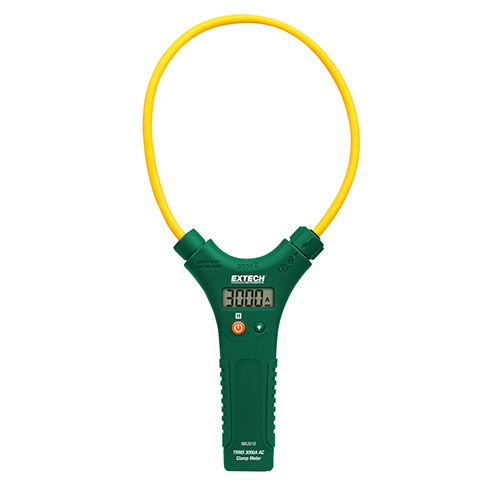

18" Flexible Clamp Meter with LCD

The MA3018 is a 3000A True RMS AC Flex Clamp Meter. The MA3018 features an 18 inch flexible clamp with LCD monitor. The True RMS measurements are for accurate readings of noisy, distorted or non-sinusoidal waveforms. Complete with two AAA batteries. UL listed and CAT IV 600V safety rating.

3000A True RMS AC Flex Clamp Meter Features:

• Measure AC Current up to 3000A
• True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms
• Flexible 18" (45.7cm) clamp jaw easily wraps around bus bars and cable bundles
• 7.5mm cable diameter fits into tight spaces and around large conductors
• Measures AC Current in three ranges
• 3000 count backlit LCD display
• Over range and Low battery indicator
• Auto Power Off with disable
• Complete with two AAA batteries

Specifications                                    Range
AC Current Ranges             0 to 30.00A, 30.00 to 300.0A, 300.0 to 3000A (autoranging)
Max Resolution                   0.01A
Basic Accuracy                    ±(3%+5 digits)
Flex Cable Diameter           0.3" (7.5mm)
Flex Cable Tip Diameter    0.51" (13mm)
Dimensions :
Model MA3018:                 13.8 x 5.1 x 1" (350 x 130 x 25mm)
Model MA3018:                  7.1oz (200g)
