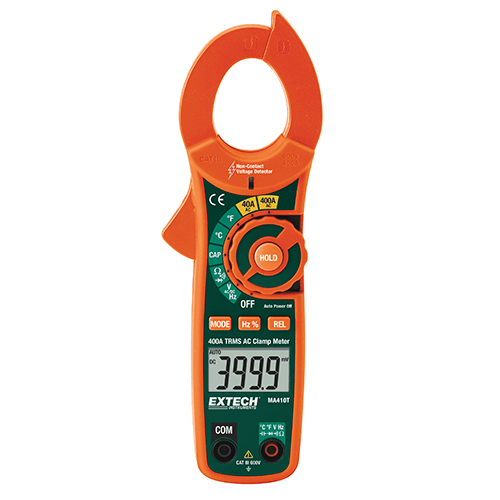

• Extech MA410T 400A AC True RMS Clamp Meter + NCV

AC Current Clamp Meter with Built-In Non-Contact Voltage Detector

The Extech MA410T is a 400 amp True RMS AC clamp meter capable of safely and efficiently measuring current without test leads. True RMS provides more accurate AC readings when measuring distorted waveforms. The integrated NCV detector enables users to quickly check for the presence of live wires before testing. Digital multimeter functions on the MA410T include: AC/DC voltage (600 volts); resistance (40 M?); capacitance (100 µF); frequency (10 kHz); temperature (-4 to 1400 degrees F/-20 to 760 degrees C); duty cycle; diode; and continuity. The MA410T also provides a 1.2-inch (30mm) jaw opening size for conductors up to 350 MCM; 4000 count backlit display; and data hold; relative mode; and auto power off functions. Comes with test leads, general purpose Type K bead wire temperature probe, two AAA batteries, carrying case, and user manual.



400A AC True RMS Clamp Meter + NCV Features:

  • True RMS for accurate readings of non-sinusoidal waveforms
  • AC Current, AC/DC Voltage, Resistance, Frequency, Capacitance, Temperature, Duty Cycle, Diode and Continuity
  • Integrated Non-Contact Voltage Detector with LED alert
  • Compact size allows measurments in tight locations
  • 1.2" (30mm) jaw size for conductors up to 350MCM
  • Relative Mode for Capacitance Zero and Offset Adjustment
  • Data Hold and Auto Power Off
  • Complete with test leads, general purpose Type K temperature probe, two AAA batteries, and carrying case


400A AC True RMS Clamp Meter + NCV Features:

  • True RMS for accurate readings of non-sinusoidal waveforms
  • AC Current, AC/DC Voltage, Resistance, Frequency, Capacitance, Temperature, Duty Cycle, Diode and Continuity
  • Integrated Non-Contact Voltage Detector with LED alert
  • Compact size allows measurments in tight locations
  • 1.2" (30mm) jaw size for conductors up to 350MCM
  • Relative Mode for Capacitance Zero and Offset Adjustment
  • Data Hold and Auto Power Off
  • Complete with test leads, general purpose Type K temperature probe, two AAA batteries, and carrying case



Specifications                             Range
Display counts                           4000
AC Current                                 40.00A, 400.0A
AC Voltage                                 4.000V, 40.00V, 400.0V, 600V
DC Voltage                                400.0mV, 4.000V, 40.00V, 400.0V, 600V
Resistance                                400.0Ω, 4.000kΩ, 40.00kΩ, 400.0kΩ,
                                                   4.000MΩ, 40.00MΩ
Frequency                                10Hz to 10kHz
Capacitance                             40.00nF, 400.0nF, 40.00μF, 100.0μF
Temperature                          -4 to 1400°F (-20 to 760°C)
Duty Cycle                                0.5 to 99.0%
Diode                                       Yes
Continuity                               Yes
Dimensions                             7.9x2.6x1.5" (200x66x37mm)
Weight                                     7.2oz (205g)


Download Brochure
Download User Manual
