High resolution mini clamp with Voltage, Frequency, and Resistance:

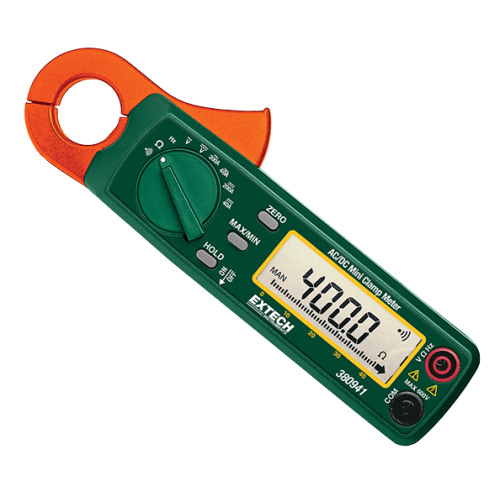

The compact Extech 380941 is a 200 Amp mini AC/DC clamp meter with a small diameter jaw designed to reach in small areas while providing 10mA resolution (DC) and very low-current sensitivity. This mini clamp meter is useful for troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work, as well as home electrical, fleet maintenance, marine, and motorcycle repairs. The 380941 has a CAT III 300-Volt safety rating and a one year warranty. Comes with batteries and manual.

200A AC/DC Mini Clamp Meter Features

Specifications           Range
True RMS                    —
AC Current:                200A
Resolution                  100mA
Accuracy                    ±(1.0% +2d)
DC Current:                40A
Resolution                  10mA
Accuracy                     ±(1.0% +2d)
AC Voltage:                400V
Resolution                  0.1V
Accuracy                    ±(1.5% +4d) (50/60Hz)
DC Voltage:               400V
Resolution                 0.1V
Accuracy                   ±(1.0% +2d)
Resistance:                400Ω
Resolution                 0.1Ω
Accuracy                    ±(1.5% +2d)
Frequency:                10kHz
Resolution                 0.01Hz
Accuracy                    ±(0.5% +2d)
Dimensions:               7x1.75x1.25" (178x45x32mm)
Weight:                      6 oz (170g)
