Integrated Non-Contact Voltage Detector

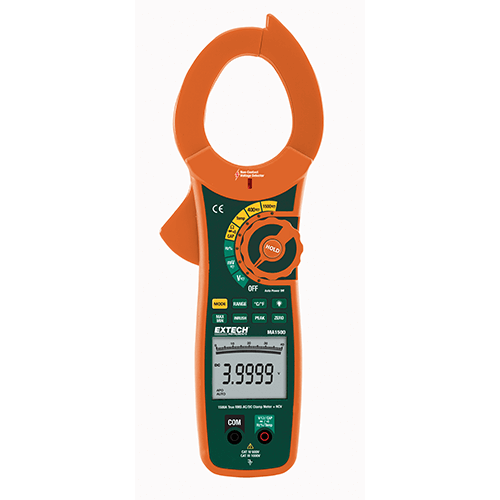

The MA1500 is a 1500A True RMS AC/DC Clamp Meter. 2.0 in. (52mm) jaw size for conductors up to 500MCM with True RMS for accurate readings of non-sinusoidal waveforms. Additional features include: Relative Mode for Capacitance Zero and Offset Adjustment, Data Hold, Peak Hold, MIN/MAX, Auto Power Off, and Inrush function to capture transients during motor startup. Complete with test leads, Type K bead wire temperature probe, 9V battery and carrying case.

1500A True RMS AC/DC Clamp Meter + NCV Features:

• True RMS for accurate readings of non-sinusoidal waveforms
• Built-in non-contact Voltage detector with LED alert
• 2.0" (52mm) jaw size for conductors up to 500MCM
• Dual 40,000/4000 count, backlit LCD display
• Includes Multimeter and Type K Temperature functions
• Inrush function captures transients during motor startups
• Relative Mode for Capacitance Zero and Offset Adjustment
• Data Hold, Peak Hold, MIN/MAX, and Auto Power Off
• Complete with test leads, Type K bead wire temperature probe, 9V battery and carrying case

Specifications                                   Range
Display counts                              40,000/4,000
AC Current (True RMS)               400.00A, 1500.0A
DC Current                                     400.00A, 1500.0A
AC Voltage (True RMS )              400.00mV, 4.000V, 40.00V, 750.0V
DC Voltage                                    400.00mV, 4.0000V, 40.000V, 1000.0V
Resistance                                    400.00Ω, 4.0000kΩ, 40.000kΩ,
                                                        400.00kΩ, 4.0000ΜΩ, 40.000MΩ
Frequency                                     40Hz to 40MHz
Capacitance                                  400.00nF, 4000nF, 40.00µF, 400.0µF,
                                                        4.000mF, 20.00mF, 40.00mF
Temperature                               -148 to 1832°F (-100 to 1000°C)
Duty Cycle                                     10.0 to 95.0%
Diode                                              Yes
Continuity                                      Yes
Dimensions                                  11.57x4.13x1.85" (294x105x47mm)
Weight                                           18.9oz (536g)
