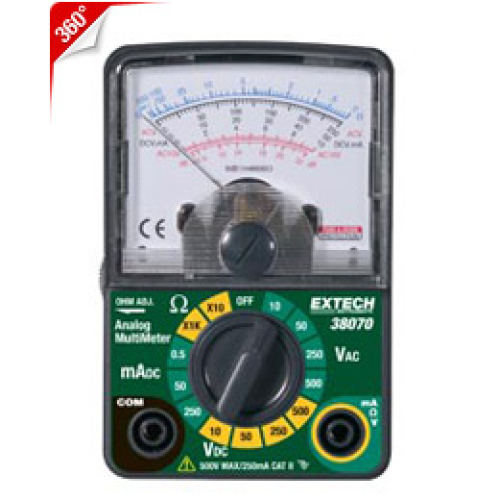

5 function analog multimeter with easy to read color-coded display

Extech’s 38070 offers the testing advantages of an analog meter with a pocket-friendly size and detachable leads. This compact and affordable multimeter is equipped with measurement capabilities that are ideal for the hobbyist, handyman, electronics tinkerer, or DIYer. Use this meter to perform basic troubleshooting on anything connected to an outlet, like refrigerators, dryers, and other appliances, as well as electronic devices found around the home and garage. The 38070 is great for automotive and marine electrical, A/V projects, Arduino projects, and secondary home wiring systems, such as security alarm and thermostat circuits. Fans of analog meters will like enjoy using it to more easily see minor or quick electrical changes with a swing of the needle versus a fluctuating digital readout. Analog meters like this one are also useful for illustrating adjustments made to a circuit between relative high and low settings. Includes test leads, 1 AA battery, and user manual.

Compact Analog MultiMeter Features:

• 1.75" (45mm) analog display
• Three color coded scale for easy reading
• AC/DC Voltage, DC Current, Resistance, Decibel function
• Full size test leads for better grip and easy replacement

Specifications          Range

DC Voltage               10V, 50V, 250V, 500V

AC Voltage               10V, 50V, 250V, 500V

DC Current             0.5mA, 50mA, 250mA

Resistance               10kΩ, 1MΩ

Decibel                   -10 to 56dB

Dimensions             3.82 x 3.34 x 1.3" (97 x 65 x 33mm

Weight                     3.88oz (110g)
