Auto/Manual Ranging Pen Multimeter with Non-Contact Voltage Detector

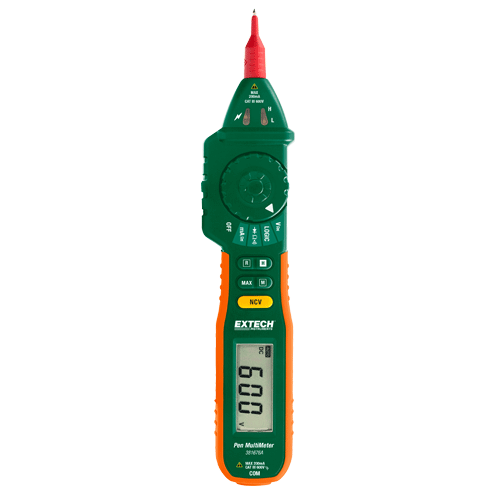

The Extech 381676A is a Pen Styled Multimeter with a Built in NCV detector. The 381676A features nine functions including AC/DC voltage to 600V, AC/DC Current to 200mA, Resistance, as well as Logic, Diode and Continuity tests. This meter has an easy to use rotary dial with alligator clips for one handed operation. Its convenient built in non-contact voltage detector allows for quick detection of live voltage. The 381676 has a CAT III-600V rating and comes complete with test leads, alligator clips, batteries, manual and soft case.

• Auto/Manual ranging pen-style multimeter
• Large 2000 count high contrast LCD display
• Built-in Non-Contact Voltage (NCV) detection with visible and audible alarm
• Data Hold, Range Hold, Maximum Hold, Auto Power Off
• Overrange and low battery indication
• Ergonomic housing with easy one-hand operation rotary function dial
• Complete with test leads (one built-in tip and one remote with cable), two alligator clips, 2 AAA batteries, and soft case

Specifications                                 Range
DC Voltage                                  200mV, 2, 20, 200, 600V
AC Voltage                                   200mV, 2, 20, 200, 600V
DC Current                                   20mA, 200mA
AC Current                                   20mA, 200mA
Resistance                                    200, 2k, 20k, 200k, 2M, 20MΩ
Non-Contact Voltage (NCV)      >110VAC
Logic Test                                     0 to 1.5V (Green LED), 1.5 to 3.5V (LED off), 3.5 to 5V (Red LED)
Diode Test                                   1mA @ 1.5V approx
Continuity Test                          Audible beep < 50Ω
Dimensions                                8.2x1.5x1.1” (208x38x29mm)
Weight                                        4.6oz (129g)
