Autoranging Multimeter with 2000 Count Large LCD Display

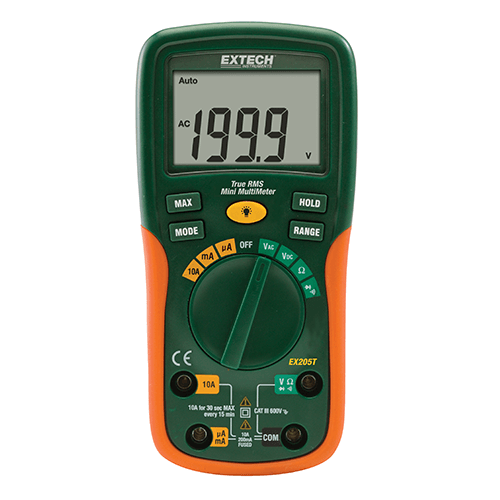

The Extech EX205T is a True RMS digital multimeter, which provides truer AC readings when measuring distorted or non-sinusoidal waveforms and noisy signals. This model is also auto ranging, which means it automatically displays readings with the proper decimal place location and maximum resolution. Featuring a large 2000-count, backlit dual LCD with easy-to-read digits, this multimeter measures: AC/DC Voltage, Resistance, Diode Test and Continuity. The meter also makes use of a number of functions including input fuse protection, max hold, auto power off and data hold function. Product has a CAT III-600 Volt safety rating and includes test leads, 9V battery, and user manual.

• True RMS for better accuracy when measuring distorted waveforms
• 2000 count large backlit dual LCD with easy-to read digits
• Low current capability with resolution to 0.1µA
• Input fuse protection
• Max Hold, Data Hold and Auto power off
• Complete with test leads and 9V battery

Specifications                                   Range
AC Voltage                                          600V
DC Voltage                                          600V
Basic Accuracy                                  (VDC) ±0.5%
AC Current                                          10A
DC Current                                          10A
Resistance                                           20MΩ
IR Temperature (EX210T only)       -5 to 446°F / -20 to 230°C
Continuity / Diode                             Yes
Dimensions                                       5.8x2.9x1.6" (147x76x42mm)
