Manual ranging DMM with NCV detector and battery test function

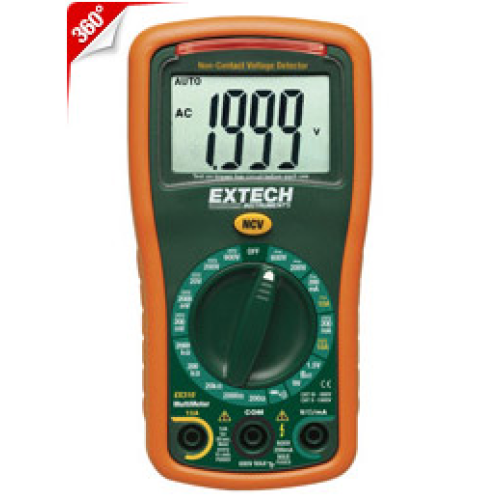

The EX310 is a compact manual ranging multi meter which features an extra-large 2000 count display and built-in non-contact AC voltage detector (NCV). AC/DC Voltage & Current, Resistance, Diode/Continuity measurements. Includes battery test function (1.5 Volt and 9 Volt). Rubber holster protects the meter. UL listed Cat III – 600 Volt safety rating. Includes test leads, 9 Volt battery and tilt stand.

  9 Function Mini MultiMeter + Non-Contact Voltage Detector Features:

• Manual ranging DMM with 9 functions and 0.5% basic accuracy
• AC/DC Voltage & Current, Resistance, Diode/Continuity
• Built-in non-contact AC voltage detector (NCV) with red LED indicator and audible beeper
• Battery test function for 1.5V and 9V batteries
• Large-digit 2,000 count LCD display
• 10A max Current
• Low battery indicator
• Complete with test leads, tilt stand, protective holster and 9V battery

Specifications                            Range
Display counts                          2000
Basic Accuracy                         0.5%
NC Voltage Detector              100 to 600VAC
DC Voltage                               0.1mV to 600V
AC Voltage                               0.1V to 600V
DC/AC Current                       0.1mA to 10A
Resistance                              0.1Ω to 2000kΩ
Capacitance                             —
Frequency                                —
Temperature (Type K)           —
Duty Cycle                               —
Diode/Continuity                  Yes
Dimensions                          5.7x2.9x1.6"
                                               (147x76X42mm)
Weight                                  9oz (260g)
