Autoranging DMM with NCV detector

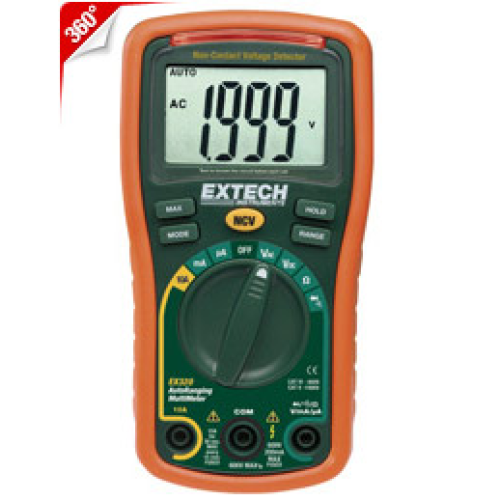

The Extech EX320, a compact auto ranging multi meter, features extra-large 2000 count display and built-in non-contact AC Voltage detector. Continuity, diode test and Max Hold functions. AC/DC Voltage & Current, and Resistance measurements. Rubber holster protects meter. UL listed Cat III – 600 Volt. Includes test leads, two AA batteries and tilt stand.

  8 Function Mini MultiMeter + Non-Contact Voltage Detector Features:

• Autoranging DMM with 8 functions and 0.5% basic accuracy
• AC/DC Voltage & Current, Resistance, Diode/Continuity
• Built-in non-contact AC voltage detector (NCV) with red LED indicator and audible beeper
• Large-digit 2,000 count LCD display
• 10A max Current
• Max Hold, Data Hold, Relative and Auto power off
• Complete with test leads, tilt stand, protective holster and 2 AAA batteries

Specifications                         Range
Display counts                        2000
Basic Accuracy                         0.5%
NC Voltage Detector              100 to 600VAC
DC Voltage                               0.1mV to 600V
AC Voltage                               0.1V to 600V
DC/AC Current                        0.1mA to 10A
Resistance                               0.1Ω to 20MΩ
Capacitance                             —
Frequency                                —
Temperature (Type K)           —
Duty Cycle                               —
Diode/Continuity                   Yes
Dimensions                           5.7x2.9x1.6"
                                                 (147x76X42mm)
Weight                                    9oz (260g)
