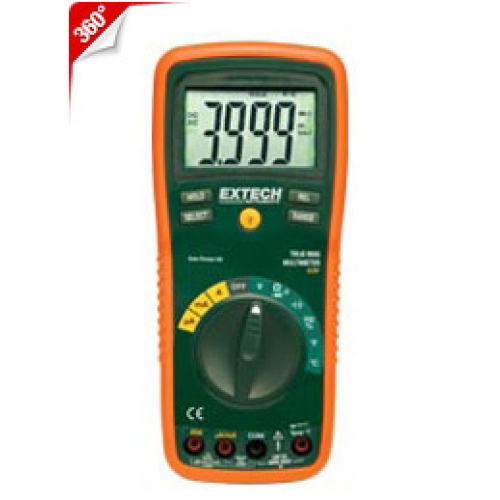

True RMS, autoranging DMM with large digit LCD display and temperature function

The Extech EX430 True RMS Autoranging Multimeter (with K Type, Capacitance, Frequency, and Duty Cycle) is a professional grade True RMS multimeter capable of performing a wide range of measurements. Functions include AC and DC voltage to 600V, AC and DC current to 20A, resistance to 40M, continuity and diode test. Also includes a Type K thermometer function for contact or air temperature measurements from -4 to 1832°F (-20 to 750°C). Advanced functions include Capacitance, Frequency and Duty Cycle. The meter comes complete with test leads, Type K temperature probe, 9V battery, protective holster, adjustable tilt stand and Velcro hanging strap. Cat lll 600V, CE and UL listed.

11 Function True RMS Professional MultiMeter Features:

• True RMS DMM with 11 functions and 0.3% basic accuracy
• AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Temperature, Diode/Continuity, Duty Cycle
• Input fuse protection and mis-connection warning
• 20A max Current
• Type K temperature measurements
• Data hold, Relative, Auto power off
• Large-digit backlit LCD
• Complete with CAT III test leads, tilt stand, protective holster, velcro hanging strap, Type K bead wire temp probe and 9V battery

  Specifications                               Range
Temperature (IR)                         —
Averaging/True RMS                   Averaging
Basic Accuracy (VDC)                  ±0.3%
AC Voltage                                    1mV to 750V
DC Voltage                                   0.1mV to 1000V
AC Current                                    0.1mA to 20A
DC Current                                    0.1μA to 20A
Resistance                                    0.1Ω to 20MΩ
Capacitance                                ✓ 0.01nF to 100μF
Frequency                                   ✓ 0.001Hz to 10MHz
Temperature (Type K)               -4 to 1382°F
                                                       (-20 to 750°C)
Duty Cycle                                   ✓ 0.1% to 99.9%
Continuity / Diode                      Yes
Dimensions                                  7.4x3.2x2"(187x81x50mm)
Weight                                          0.75lbs (342g)
Warranty                                      3 year
