Compact Manual ranging multimeter with 8 functions including Temperature:

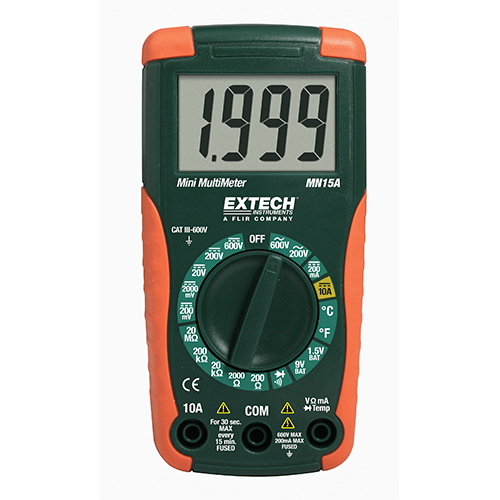

Small on size and configured with vital functionality, the compact, manual-ranging Extech MN15A Digital Mini Multimeter is a popular choice for anyone who prefers a smaller meter they can carry in a pocket or tool belt. It is also a great gift idea for a hobbyist, hacker/maker, tinkerer, or DIYer working on home improvement, automotive electrical, and A/V projects. Use the MN15A for big and small tasks at home and in the garage. Handy for quick testing, use it to measure AC/DC voltage and DC current, as well resistance with functions for testing diodes and checking for continuity. Plus, the battery test function lets you quickly check the condition of 1.5-volt and 9-volt batteries. The MN15A comes with built-in stand, 9-volt battery, test leads, general use temperature probe, user manual, and one-year limited warranty.

Digital Mini MultiMeter Features:

• Large easy to read digital display
• AC/DC Voltage, DC Current, Resistance, Continuity, Diode Test and Type K Temperature
• 1.5V and 9V Battery test function
• Complete with 9V battery, general purpose Type K bead wire probe and test leads

Specification               Range
DC Voltage             600V (0.1mV)
AC Voltage             600V (0.1V)
DC Current             10A (0.1mA)
AC Current              —
Resistance              20MΩ (0.1Ω)
Capacitance            —
Frequency               —
Temperature         -4 to 1400°F
                                 (-20 to 750°C)
Duty Cycle              —
Battery Test           9V & 1.5V Batteries
Category rating      CAT III-600V
Dims/ Wt                5.43x2.83x1.5" (138x72x3 8mm)/ 5.4oz (153g)
