Compact Autoranging multimeters with 10 functions including Temperature:

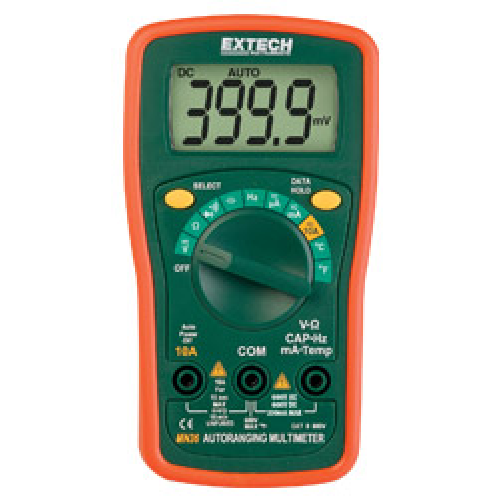

The Extech MN36 digital multimeter is compact but still packed with features. Capable of measuring AC and DC voltage up to 600 volts, the MN36 is autoranging, which means it automatically displays readings with the proper decimal place location and maximum resolution. Comes with protective rubber holster, 2xAAA batteries, bead wire Type K temp. probe and test leads.

Digital Mini MultiMeter Features:

• Large easy to read digital display
• AC/DC Voltage, DC Current, Resistance, Capacitance, Frequency, Type K Temperature, Continuity/Diode
• Convenient mini size with protective rubber holster and tilt stand
• Data Hold locks reading in the display
• Includes protective rubber holster, 2xAAA batteries, bead wire Type K temp. probe and test leads

Specifications                  Range
(%rdg+digits)
DC Voltage                    400mV, 4V, 40V, 400V, 600V
AC Voltage                    4V, 40V, 400V, 600V
DC Current                   400μA, 4000μA, 40mA, 200mA, 10A
AC Current                   400μA, 4000μA, 40mA, 200mA, 10A
Resistance                    400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
Capacitance               4nF, 40nF, 400nF, 40μF, 100μF
Frequency                     10Hz, 100Hz, 1kHz, 10kHz, 100kHz, 1MHz, 5MHz
Temperature             -4 to 1400°F (-20 to 750°C)
Batttery Test                —
Power                            2 x AAA batteries
Dimensions                 5.43x2.83x1.5" (138x72x38mm) 5.43x2.83x1.5" (138x72x38mm)
Weight                           5.4oz (153g) 5.4oz (153g)
