Averaging, manual ranging DMM with 2,000 count large LCD display

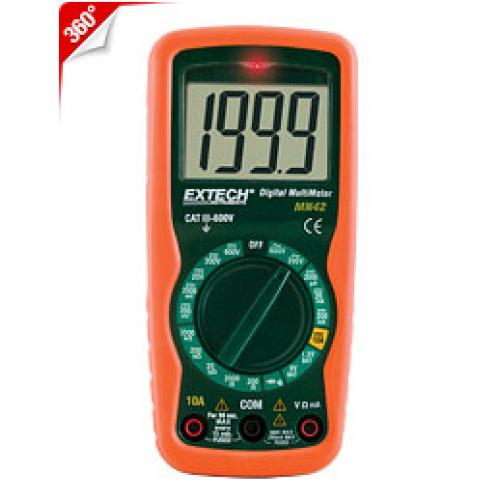

The compact, manual-ranging Extech MN42 Digital Multimeter is equipped with capabilities a tradesman or technician can use every day while also perfect for a hobbyist, hacker/maker, or DIYer working on home improvement and A/V projects. Built-in Non-contact Voltage Detector (from 100 to 600VAC). AC/DC Voltage, DC Current, Resistance, Continuity / Diode, Battery Test. Complete with test leads, 9V battery and carrying case.

8 Function Compact MultiMeter + NCV Features:

• Built-in Non-contact Voltage Detector (from 100 to 600VAC)
• AC/DC Voltage, DC Current, Resistance, Continuity / Diode, Battery Test
• Manual ranging
• 2000 count high-contrast LCD display
• 1.5V and 9V battery test function
• Complete with test leads, 9V battery and carrying case

Specifications                   Range
Ranging                               Manual
Display counts                    2000
Basic Accuracy                   0.5%
NC Voltage Detector        100 to 600VAC
DC Voltage                         600V(0.1mV)
AC Voltage                          600V (0.1V)
DC Current                         10A (1μA)
AC Current                         —
Resistance                         2MΩ (0.1Ω)
Capacitance                      —
Frequency                         —
Temperature                    —
Duty Cycle                        —
Diode/Continuity            Yes
Battery Test                     1.5V / 9V
Dimensions                      5.9 x 2.75 x 1.8” (1 50 x 70 x 48mm)
Weight                              9oz (255g)
