True RMS Autoranging Digital MultiMeters with RS-232 PC Interface and Temperature Function
MP530A is a 5000 count, True RMS auto Ranging Multimeter measures AC/DC Voltage, AC/DC current, Resistance, Temperature, Capacitance and Frequency with a 0.08% basic accuracy. Additional features include: diode test, continuity check, easy-to-read backlit display, Auto Power Off, Data Hold, and low resistance auto lead zero. UL listed, CAT IV-600 Volt rating. Includes protective holster with built-in stand, test leads, Type K bead temperature probe, and 9 Volt battery.
MultiPro® High-Performance MultiMeter Features:
- High basic DC Voltage accuracy of 0.08%
- Wide AC Voltage bandwidth of 40Hz to 20kHz
- Rugged design with protective holster and water resistant housing
- Backlit 5000 count LCD display for high resolution (0.01mV, 0.1µA, 0.01Ohm, 0.01nF, 0.001Hz)
- Multimeter functions: True RMS AC/DC Voltage and Current, Resistance, Frequency, Capacitance, Diode and Continuity
- Temperature function: -58 to 1832°F (-50 to 1000°C )
- Smart auto power off, Hold and low resistance auto-lead zero
- Complete with built-in stand, CAT IV test leads, protective holster, Type K temperature probe and 9V battery
- Optional Windows® compatible PC communication software and optically isolated cable
Specifications Range
DC/AC Voltage: 50mV, 500mV, 5V,
50V, 500V, 1000V
DC/AC Current: 500μA,
5000μA, 50mA,
500mA,
5A, 10A
Resistance (Ω) 50, 500, 5k, 50k,
500k, 5M, 50MΩ
Capacitance 50nF ,500nF, 5μF,
50μF, 500μF, 9999μF
Frequency 5Hz to
125kHz
Temperature (MP530A only) -58 to
1832°F (-50 to 1000°C
Dimensions/ Wt 7.32
x 3.42 x 1.39" (186 x 87x 35.5mm)
/ 0.75lb (340g)

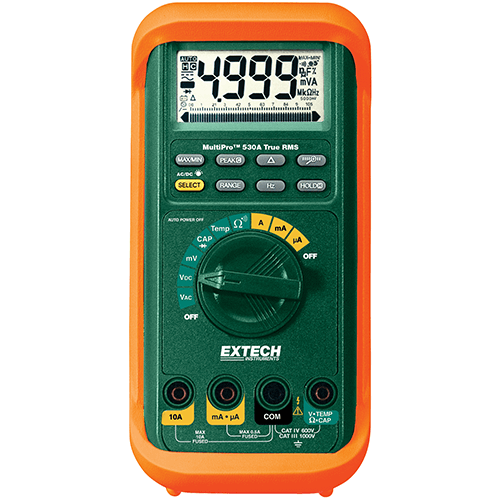

Extech MP530A MultiPro® High-Performance MultiMeter
- Brand: Extech Instruments by FLIR
- Product Code: MP530A
- Availability: In Stock
