Measures Current, Resistance, Temperature (Type K), and Power

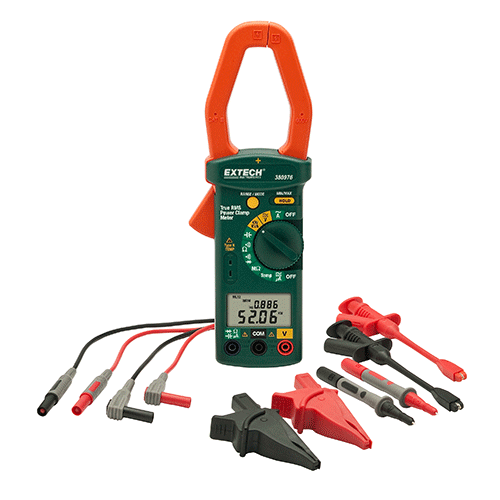

The 380976-K is a Single Phase/3 Phase 1,000 Amp AC Power Clamp Meter Kit. Measures 1/3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator. Auto Detect AC/DC Voltage measurements with simultaneous frequency display. In addition, the supplied test lead kit includes two CAT IV 72" test leads, 2 modular test probe handles, 2 plunger activated jaw clips, and 2 extra-large alligator clips. Complete with test lead kit, Type K probe, carrying case and 9V battery.

Single Phase/Three Phase 1000A AC Power Clamp Meter Kit Features:

• 1.6" (40mm) clamp jaw opening and large dual LCD display (9999 count)
• Measures 1/3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator
• AC+DC µA current with 10nA resolution for flame rod tests
• Auto Detect AC/DC Voltage measurements with simultaneous frequency display
• Capacitance to 7000µF with 0.001µF resolution
• High Resistance tests to 100MOhm
• Type K, °C/°F switchable, temperature to 1000°F
• Diode and Continuity tests
• Complete with test lead kit, general purpose Type K thermocouple probe, carrying case, and 9V battery

Function                                          Max Range / Resolution
True Power (W):                                   600kW / 10W
Apparent Power(kVA):                        600kVA / 100VA
Reactive Power (kVAR)                       600kVAR/10VAR
Horsepower (HP)                                 800HP/0.01HP
Phase Angle (f):                                   -60 to +60° / 0.1°
AC Current: (Trms):                             1000A / 10mA
uA Current (AC+DC) (Trms):              1000µA / 10nA
AC/DC Voltage: (Trms):                      600V / 0.1mV
Resistance (Ω):                                    1000kΩ / 0.1Ω
Resistance (MΩ):                                100MΩ / 1kΩ
Capacitance:                                        7000µF / 1nF
Frequency:                                           40Hz to 1kHz / 0.1Hz
Temperature (Type K):                      -58 to 1000°F / 0.1°F
                                                              -50 to 900°C / 0.1°C
Dimensions:                                         9 x 3 x 1.6" (228 x 76 x 39mm)
Weight:                                                 16.4oz (465g)
