The 1000 series syringes are a mid volume Gastight syringe. This series of syringes is ideal for dispensing volumes from 100 μL up to 100 mL. A variety of different terminations and needle options are available in this series.
Specifications
| Volume | 10 mL |
| Syringe Type | Gastight |
| Syringe Series | 1000 |
| Termination | Removable Needle (RN) |
| Needle | Large RN |
| Gauge | 22 gauge |
| Point Style | 2 |
| Needle Length | 2 inch (51 mm) |
| Needle Inner Diameter | 0.0161 inches (0.41 mm) |
| Needle Outer Diameter | 0.0283 inches (0.72 mm) |
| Std. Needle Dead Volume | 6.81 µL |
| Fluid Path | SST, borosilicate glass, PTFE |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 200 psig (13.8 bar) |
| Maximum Temperature | 115°C / 239°F |
| Minimum Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.574 inches (14.6 mm) |
| Barrel Outer Diameter | 0.695 inches (17.7 mm) |
| Sales Quantity | 1 syringe per pack |

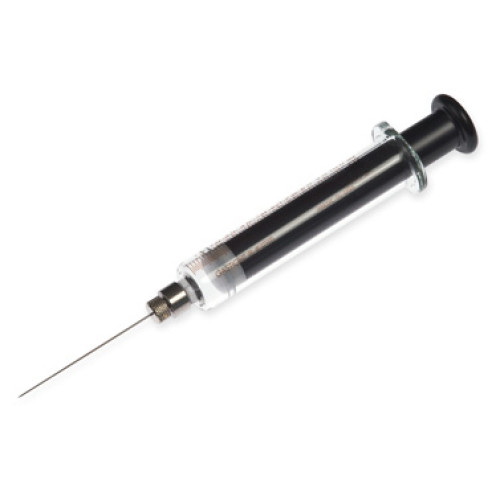

Hamilton 81630 10 mL, Model 1010 RN SYR, Large Removable NDL, 22 ga, 2 in, point style 2
- Brand: Hamilton Company
- Product Code: 81630
- Availability: In Stock
