The 1000 series syringes are a mid volume Gastight syringe. This series of syringes is ideal for dispensing volumes from 100 μL up to 100 mL. A variety of different terminations and needle options are available in this series.
Specifications
| Volume | 5 mL | |
| Syringe Type | Gastight | |
| Syringe Series | 1000 | |
| Termination | Luer Tip Cemented Needle (LTN) | |
| Needle | Cemented Needle | |
| Gauge | 22 gauge | |
| Point Style | 2 | |
| Needle Length | 2 inch (51 mm) | |
| Needle Inner Diameter | 0.0161 inches (0.41 mm) | |
| Needle Outer Diameter | 0.0283 inches (0.72 mm) | |
| Std. Needle Dead Volume | 6.81 µL | |
| Fluid Path | SST, borosilicate glass, PTFE | |
| Autoclavable | No | |
| Gas Sterilizable | Yes | |
| Pressure | 200 psig (13.8 bar) | |
| Maximum Temperature | 50°C / 122°F | |
| Minimum Temperature | 10°C / 50°F | |
| Barrel Inner Diameter | 0.406 inches (10.3 mm) | |
| Barrel Outer Diameter | 0.530 inches (13.5 mm) | |
| Sales Quantity | 1 syringe per pack |

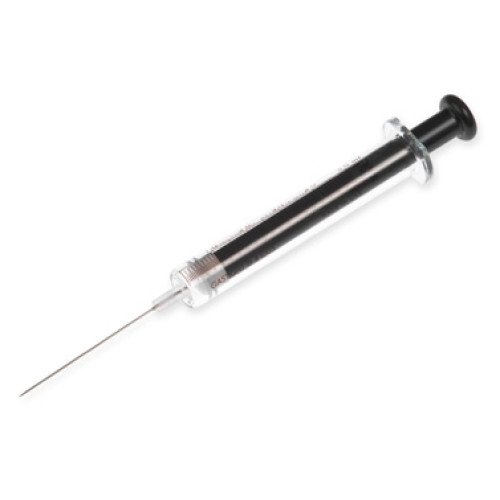

Hamilton 81517 5 mL, Model 1005 LTN SYR, Cemented NDL, 22 ga, 2 in, point style 2
- Brand: Hamilton Company
- Product Code: 81517
- Availability: In Stock
