The 1700 series syringes are the Gastight version of the original 700 series syringes. This series of syringes is ideal for dispensing volumes from 1 μL up to 500 μL. A variety of different terminations and needle options are available in this series.
Specifications
| Volume | 500 µL |
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Luer Tip Cemented Needle Special (LTSN) |
| Needle | Cemented Needle |
| Custom Gauge | Custom Gauge |
| Custom Point Style | Custom Point Style |
| Custom Needle Length | 0.75 inch (19.1 mm) |
| Std. Needle Dead Volume | N/A |
| Fluid Path | SST, borosilicate glass, PTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 700 psig (48.3 bar) |
| Maximum Temperature | 50°C / 122°F |
| Minimum Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.128 inches (3.26 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Sales Quantity | 1 syringe per pack |

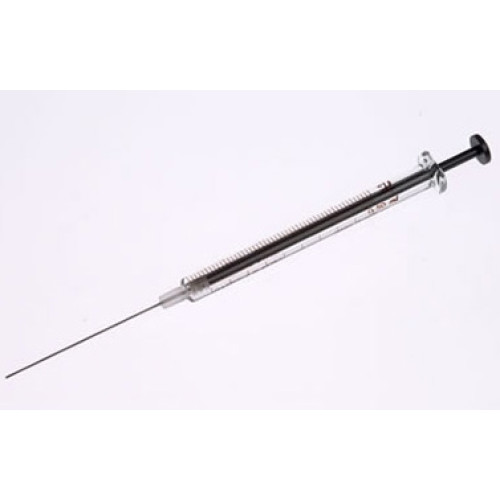

Hamilton 81214 500 µL, Model 1750 LTSN SYR, Cemented NDL, Custom gauge, length, point style
- Brand: Hamilton Company
- Product Code: 81214
- Availability: In Stock
