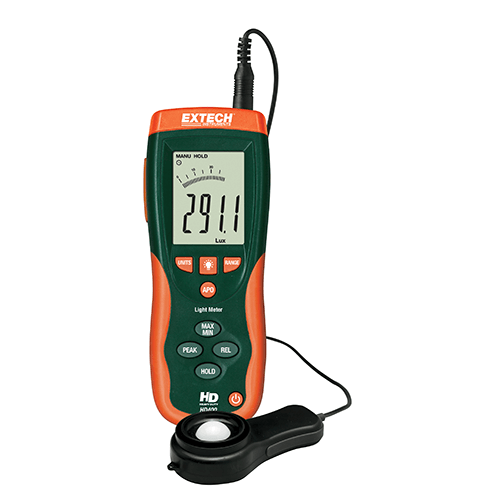

Light meter with double molded housing and large backlit display with 40-segment bar graph

The HD400 Light Meter measures from 0 to 40,000Fc and 0 to 400kLux in with 0.01Fc/0.1Lux resolution. It features: 5% accuracy, Peak mode (10µs), Relative mode, Min/Max, Data Hold, backlit LCD display with 40-segment bar graph, and a rugged double molded housing. Comes complete with light sensor with 3ft (1m) cable and protective cover, software with USB cable, hard carrying case, and 9-Volt battery.

Heavy Duty Light Meter Features:

• Large backlit LCD display with 40-segment bar graph
• Wide range to 40,000Fc or 400,000 Lux
• Cosine and color corrected measurements
• Utilizes precision silicon photo diode and spectral response filter
• Peak mode (10mS) captures highest reading
• Relative mode indicates change in light levels
• Min/Max and Data Hold
• Backlight for readings in low light levels
• Heavy Duty rugged double molded housing
• Built-in USB port

Specifications                      Range
Fc Range                 40, 400, 4000, 40.00kFc
Lux Range              400, 4000, 40k, 400kLux
Accuracy               ±5% rdg
Max Resolution        0.01Fc/0.1Lux
Datalogging (HD450)          16,000 continuous readings; 99 selected readings
PC interface                           USB
Dimensions                            6.7 x 3.1 x 1.6” (170 x 80 x 40mm)
Weight                                    13.7oz (390g)
