Test and measurement kit for electrical installation, troubleshooting, and repair:

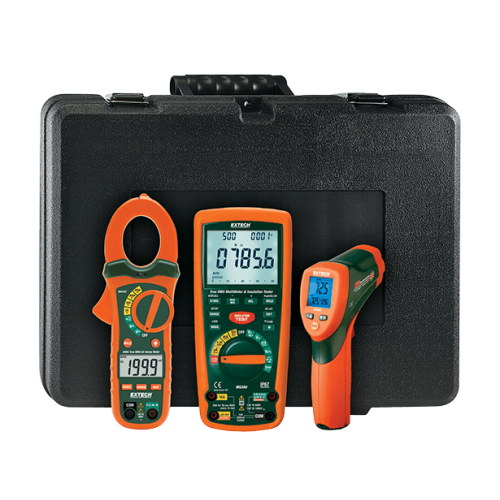

The Extech MG300-ETK Electrical Troubleshooting Kit includes three compact tools that are indispensable at a customer site for electrical installation, troubleshooting, and repair. The first tool in the kit is the MG300, a 13 Function Wireless True RMS MultiMeter/Insulation Tester featuring 125 Volt, 250 Volt, 500 Volt and 1000 Volt test voltages, insulation resistance from 0.001MOhm to 4000MOhm, auto discharge of capacitive voltage, lock power on function for hands-free operation, data hold, min/max, relative mode, auto power off and more at a CAT IV 600 Volt safety rating. The second tool is the 42509 Dual Laser IR Thermometer with Color Alert which measures IR temperature up to 950°F (510°C). The third tool in this kit is the MA430T 400 Amp True RMS AC/DC clamp meter with built-in non-contact voltage detector, 6 functions and a CAT III 600 Volt safety rating.

Electrical Troubleshooting Kit Features:

• Kit includes:
• MG300 - True RMS Multimeter/Insulation Tester with 13 Functions and Wireless PC Interface
• 42509 - 12:1 Infrared Thermometer with high/low alarm and fast 2-color display
• MA430T - 400A True RMS AC Clamp Meter with built-in non-contact voltage detector

Specifications                                        Range
Wireless frequency                      915MHz (MG300); 433MHz (MG302)
Insulation Resistance                  4MΩ, 40MΩ, 400MΩ, 4000MΩ
Insulation Test Voltages             125V, 250V, 500V, 1000V
AC/DC Voltage                             1000V
AC/DC Current                             10A
Resistance                                     40MΩ
Capacitance                                 40mF
Frequency                                   100MHZ
Duty Cycle                                    0.1 to 99.9%
Temperature                              -58 to 2192°F (-50 to 1200°C)
4-20mA%                                    -25 to 125%
Continuity/Diode                        Yes
