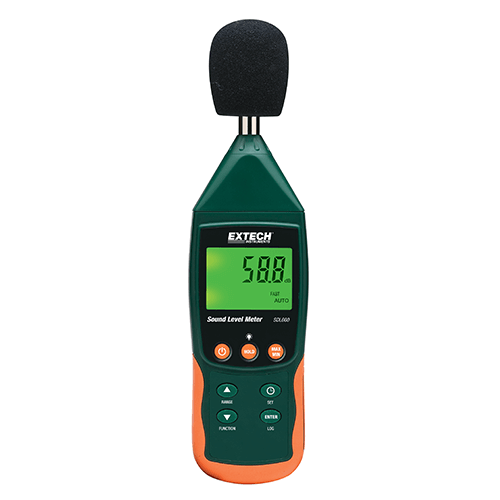

The SDL600 records data on an SD card in Excel format. High accuracy ±1.4dB meets ANSI and IEC 61672-1 Type 2 standards. 30 to 130dB measurement range. Auto or Manual ranging. AC analog output for connection to an analyzer or recorder. Large backlit LCD display. Stores 99 readings manually and 20M readings via 2G SD card. Datalogger date/time stamps and stores readings on an SD card in Excel format for easy transfer to a PC. User programmable sampling rate from 1 to 3600 seconds. Featuring Min/Max, Data Hold, and Auto Power Off functions. Complete with 6 AA batteries, SD Card, wind screen, and hard carrying case.

Specifications                         Range
Range                                       30 to 130dB
Frequency Range                   31.5 to 8kHz
Basic accuracy                       ±1.4dB
Weighting                               A and C
Response Time                      Fast (125ms)/Slow (1s)
Datalogging                            20M data records using a 2G SD card

Analog Output                        AC                                                                                                                                                                                                                                                       PC Interface                            USB
Dimensions                             9.8 x 2.9 x 1.9" (250 x 73 x 48mm)
Weight                                    18.3oz (520g)
