Noise Dosimeter/Datalogger Kit Features:

• Perform OSHA and IEC Noise accumulation surveys
• Adjustable Criterion Level, Exchange Rate, and Threshold
• Applications include Personal accumulated noise exposure measurement, Workplace noise assessment, OSHA and other regulatory agency compliances
• Datalogs up to 4500dB readings when used as a sound level meter
• Optional 94/114dB calibrator to perform “before” and “after” calibration checks per ANSI standards
• Stores up to 5 dosimeter surveys. Data includes Start/Stop Time, %Dose, TWA, peak flags, when used in the Dosimeter mode
• Bi-directional RS-232 with Windows® 95/98/NT/2000/ME/XP compatible software to control setup and retrieve stored events or analyze real time measurements. Complete with 9 pin to 25 pin adaptor, and RS-232 cable.
• Includes belt clip and clip-on 0.5” microphone with 2.6ft (0.8m) cable, 4 AAA batteries, mini screwdriver and carrying case, software, and cables

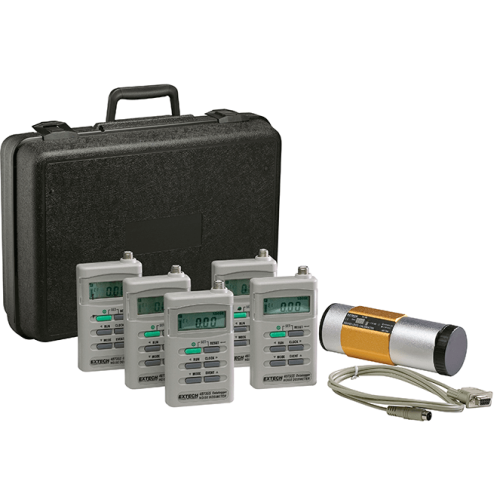

• Includes five 407355 Noise Dosimeters with microphones, serial cable and PC Software
• Includes 407766 94/114dB Sound Calibrator
• Complete with hard plastic carrying case

Specifications                                        Range
Standards                                     Meets ANSI S1.25(1991) Type 2, ISO-1999, BS 402 (1983)
Range/Resolution                       70 - 140 dBA / 0.1dB
Digital Display                             LCD 0.01-9999%
Criterion Level                            80, 84, 85, or 90dB
Exchange Rate                            3, 4, 5 or 6 dB
Threshold Level                          70-90 (1db steps)
Frequency weighting                   A
Response Rate         &
