Records data to SD card in Excel® format

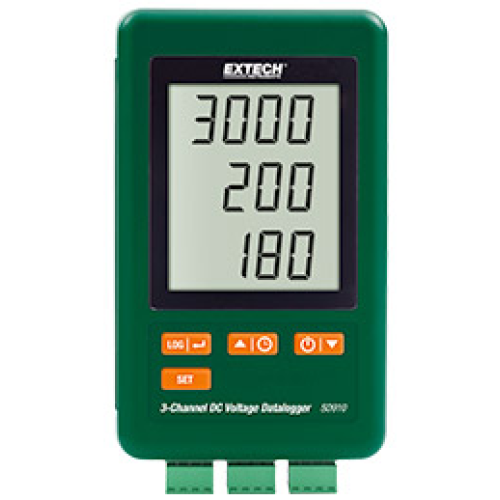

Extech's SD910 allows technicians to easily monitor and record DC mV values from 3 external sensors, transducers, and other sources using one meter. It also stores the time and date of when readings are taken. The logger features a large triple LCD display and records data on an SD card in an Excel®-ready format for easy transfer to a PC for analysis, trending, and archiving. Complete with six AAA batteries, SD memory card, Univeral AC Adaptor with multi-plugs (US, EU, UK, AUS), 3 input connect sockets, and mounting bracket.

3-Channel DC Voltage datalogger Features:

• Triple LCD simultaneously displays three DC Voltage (mV) channels
• Datalogger date/time stamps and stores readings on an SD card in Excel® format for easy transfer to a PC
• Selectable data sampling rate: 2, 5, 10, 30, 60, 120, 300, 600 seconds or Auto
• Complete with 6 AAA batteries, SD memory card, Universal AC adaptor with multi-plugs (US, EU, UK, AU), 3 input sockets and mounting bracket

Specifications                     Range

DC Voltage (mV)                 300.0mV
                                               3000mV
Memory Approx.                2.7M readings using 4GB SD memory card
Dimensions                         5.2 x 3.1 x 1.3" (132 x 80 x 32mm)
Weight                                  7oz (199g)

Download Brochure
Download Users Manaul
