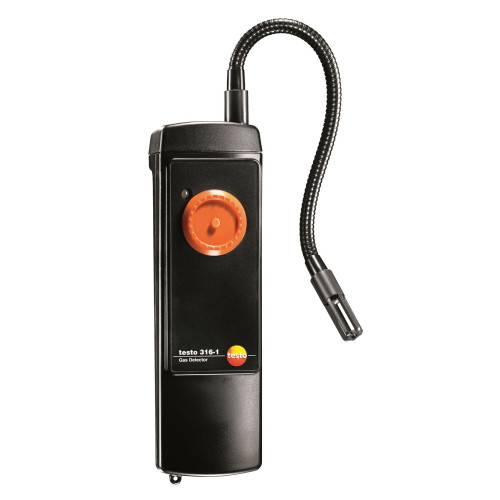

Hairline cracks in pipes, old and worn out gaskets. Even the tiniest of gas leaks in a natural gas pipe can cause enormous problems. The new testo 316-1 leak detector will help you pinpoint the exact position of a leak when the leak has already been detected using a leak measuring device,
Delivery Scope
testo 316-1 electronic gas leak detector, battery.
| Methane (CH₄) | |
|---|---|
Measuring range | 0 to 10000 ppm CH₄ |
Lower response threshold | 100 ppm |
1st alarm limit | 200 ppm CH₄ (LED yellow) |
2nd alarm limit | 10000 ppm CH₄ (LED red) |
| General technical data | |
|---|---|
Operating humidity | 0 to 95 %RH |
Storage temperature | -20 to +50 °C |
Weight | 300 g |
Reaction time | t90 < 5 s |
Dimensions | 190 x 57 x 42 mm (without sensors) |
Operating temperature | +4 to +45 °C |
Warranty | 2 years |
Heat up time | 30 s |
Battery type | 9V block battery |
Battery life | > 5 h |
