CAT IV MultiMeter and AC Voltage Detector with 8-piece Test Lead kit

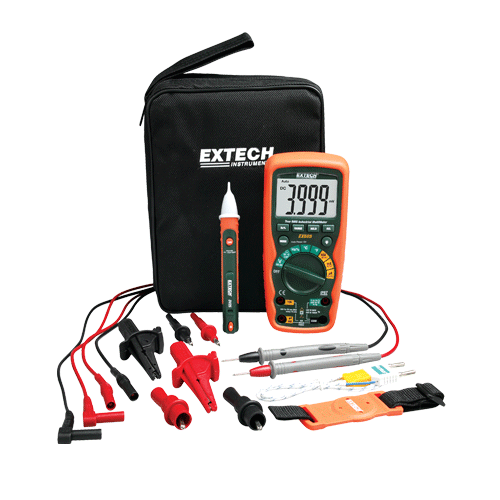

The EX505-K is a heavy duty industrial multimeter kit. The kit includes Extech’s model EX505, DV25 and TL808 products. Kit provides you with a reliable meter and all the necessary accessories for industrial electric troubleshooting. Products are supplied in a soft carrying case that provides protection and organization for the meters whenever they are needed.

Heavy Duty Industrial MultiMeter Kit Features:

• Kit Includes:
• EX505 - Industrial grade CAT IV-600V 4000 count display waterproof drop-proof rugged multimeter with True RMS functions
• DV25 - Dual Range AC Voltage Detector (24 to 1000VAC/100 to 1000VAC) + Flashlight with Audible/ Visual indication double-molded housing and CAT IV-1000V safety rating
• TL808 - 8-Piece Professional Test Lead Kit with CAT III-1000V safety rating
• Set of double molded professional test leads
• Type K thermocouple bead probe and Type K to Banana Input Adaptor

Specifications             EX205T Range (Max Resolution)        MA435T Range (Max Resolution)
AC Voltage                  600V (0.1mV) True RMS                           600V (0.1mV) True RMS
DC Voltage                  600V (0.1mV)                                             600V (0.1mV)
AC Current                  10.00A (0.1µA) True RMS                        400A (0.01A)
DC Current                 10.00A (0.1µA)                                           400A (0.01A)
Resistance                  20MΩ (0.1Ω)                                               20MΩ (0.1Ω
Frequency                    —                                                                 10kHz (0.01Hz)
Capacitance                 —                                                                100µF (0.01nF)
Temperature               —                                                                -4 to 1400°F/-20 to 760°C (0.1°)
Continuity / Diode     Yes                                                                Yes
