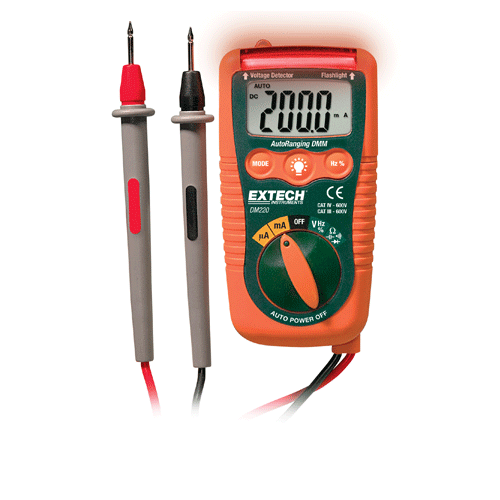

Autoranging DMM with NCV Detector and built-in Flashlight

This Mini Pocket MultiMeter has a large high contrast 4000 count LCD display, Non-Contact Voltage detection for identifying live circuits, and a built-in Flashlight. It measures AC/DC Voltage, AC/DC Current, Resistance, Frequency, Duty Cycle, Diode Test and has a Continuity Beeper. Additional features include: built-in storage clips for integrated test leads, double molded housing to provide extra protection, over-range and low battery indication. Complete with test leads and 2 AAA batteries.

 Mini Pocket MultiMeter with Non-Contact Voltage Detector Features

• Large high contrast 4000 count LCD display
• Non-Contact Voltage detection identifies live circuits
• Built-in Flashlight
• Measures AC/DC Voltage, AC/DC Current and Resistance, Frequency and Duty Cycle
• Diode Test and Continuity Beeper
• Built-in storage clips for integrated test leads
• Double molded housing provides extra protection
• Over-range and low battery indication
• Complete with test leads and two AAA batteries

Specifications            Range
NC Voltage                  100 to 600VAC
DC Voltage                   600V
AC Voltage                  600V
Resistance                  40MΩ
DC Current                 200mA
AC Current                 200mA
Frequency                  10kHz
Capacitance               200µF
Duty Cycle                  Yes
Diode Test                  Yes
Continuity Test         Yes
Dimensions               4.72 x 2.2 x 01.6" (120
Weight                        5.12oz (145g)

Download Brochure
Download Users Manual
