True RMS DMM with 4,000 count large LCD display, temperature function and waterproof housing
This Heavy Duty True RMS industrial MultiMeter measures AC/DC Voltage (1000V) and Current (10A), Resistance (40Mohms), Capacitance (100 microFarads) , dual sensitivity Frequency (electric 1kHz/electronic 10MHz), and Type K Temperature (-4 to 1382 degrees F (-20 to 750 degrees C)) . It features a 4,000 count backlit LCD, 0.5% basic accuracy, Relative/Data Hold, and Auto Power off with disable. Comes complete with test leads, magnetic hanging strap, Type K bead wire Temperature probe, carrying case, and 9V battery.
11 Function Heavy Duty True RMS Industrial MultiMeter Features:
- True RMS DMM with 11 functions and 0.5% basic accuracy
- AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode/Continuity
- Dual sensitivity frequency functions (electrical/electronic)
- 1000V input protection on all functions
- 10A max Current
- Data hold, Relative, Auto power off
- 4,000 count large backlit LCD
- Double molded housing for waterproof protection
- Complete with double molded test leads, magnetic hanging strap, Type K bead wire temp probe, carrying case and 9V battery
Specifications Range
Display Counts 4,000
count
Averaging/True RMS ✓ True RMS
Basic Accuracy 0.5%
DC/AC Voltage 0.1mV
to 1000VDC
0.1mV to 1000VAC
DC/AC Current 0.1μA
to 10A
Resistance
0.1Ωto 40MΩ
Capacitance 0.01nF
to 100μF
Frequency (electrical) 5Hz to
1kHz
Frequency (electronic) 0.001Hz to 10 MHz
Temperature ✓-4 to 1382°F
(-20 to 750°C)
Duty Cycle 0.1 to 99.9%
Diode/Continuity Yes
Dimensions 7.25x3.25x2.25"(184x83x57mm)
Weight
12.3oz (349g)

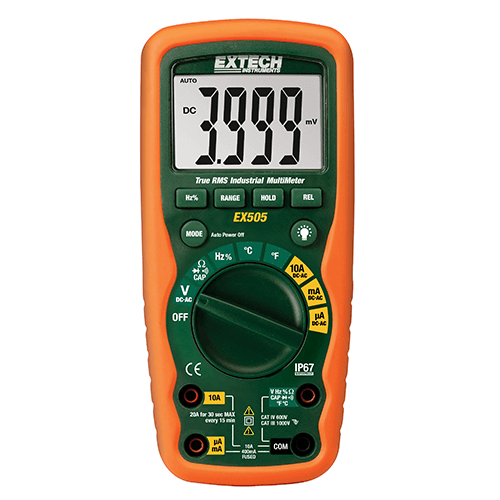

Extech EX505 11 Function Heavy Duty True RMS Industrial MultiMeter
- Brand: Extech Instruments by FLIR
- Product Code: EX505
- Availability: In Stock
