True RMS DMM with 6,000 count large LCD display, temperature function and waterproof housing
Designed to withstand harsh environments and usage, the meter's rugged, double-molded housing is IP67-rated (waterproof and dustproof) and drop-tested to 6 ft. The large, illuminated LCD displays 4-digit readout (to 6,000 counts). The EX520 offers various must-have measurements. The meter features 0.09 percent accuracy and a CAT IV 600-volt safety rating, protecting users even on outdoor wiring. Product includes a 3 year warranty, double molded test leads, 9V battery, magnetic hanging strap, temperature probe and carrying case.
11 Function Heavy Duty True RMS Industrial MultiMeter Features:
- True RMS DMM with 11 functions and 0.09% basic accuracy
- AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode/Continuity
- Dual sensitivity frequency functions (electrical/electronic)
- 1000V input protection on all functions
- 20A max Current
- MIN/MAX, Data hold, Relative, Auto power off
- 6,000 count large backlit LCD with bargraph
- Double molded housing for waterproof protection
- Complete with double molded test leads, magnetic hanging strap, Type K bead wire temp probe, carrying case and 9V battery
Specifications Range
Display Counts 6,000
count
Averaging/True RMS ✓ True RMS
Basic Accuracy 0.9%
DC/AC Voltage 0.1mV
to 1000VDC
0.1mV to 1000VAC
DC/AC Current 0.1μA
to 10A
Resistance
0.1Ωto 40MΩ
Capacitance 0.01nF
to 100μF
Frequency (electrical) 5Hz to
1kHz
Frequency (electronic) 0.001Hz to 10 MHz
Temperature -50
to 1382°F
(-45 to 750°C)
Duty Cycle 0.1 to 99.9%
Diode/Continuity Yes
Dimensions 7.25x3.25x2.25"(184x83x57mm)
Weight
12.3oz (349g)

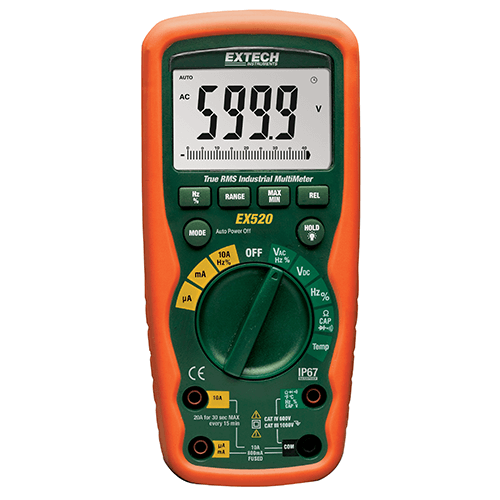

Extech EX520 11 Function Heavy Duty True RMS Industrial MultiMeter
- Brand: Extech Instruments by FLIR
- Product Code: EX520
- Availability: In Stock
