Stores up to 20,000 records with real date and time stamp

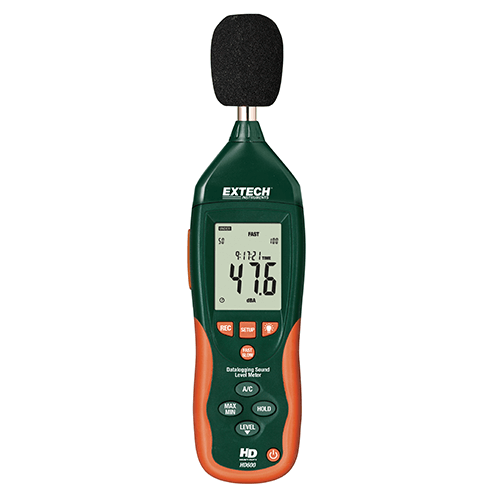

The HD600 Datalogging Sound Level Meter meets ANSI and IEC 61672-1 Type 2 standards. It has three measuring ranges from 30 to 130 dB with 1.4 dB accuracy. In addition to the LCD digital display, an analog bargraph provides easy viewing of fast changing sound levels. Unit features a rugged double-molded housing and built-in stand. Meter comes with USB cable, Windows compatible software, windscreen, tripod, hard carrying case, 9-volt battery, and user manual.

• 30 to 130dB range with 1.4dB accuracy
• Meets ANSI and IEC61672-1 Type 2 standards
• Datalogging capability up to 20,000 records at an interval rate of 1 to 59sec
• Capture up to 10 readings/sec when connected to a PC
• MIN/MAX, Data Hold, Auto power off
• Built-in USB port, double molded housing with built-in stand
• Complete with AC adaptor, Windows® compatible software, USB cable, wind cover, tripod, 9V battery andhard carrying case

Specifications                   Range
Range                                 30 to 130dB
Basic accuracy                  ±1.4dB
Weighting                          A and C
Response Time                  Fast/Slow
Analog Output                  AC/DC
Datalogging                       20,000 points
PC Interface                      USB
Dimensions                      10.9 x 3 x 2" (278 x 76 x 50mm)
Weight                              12.3oz (350g)
