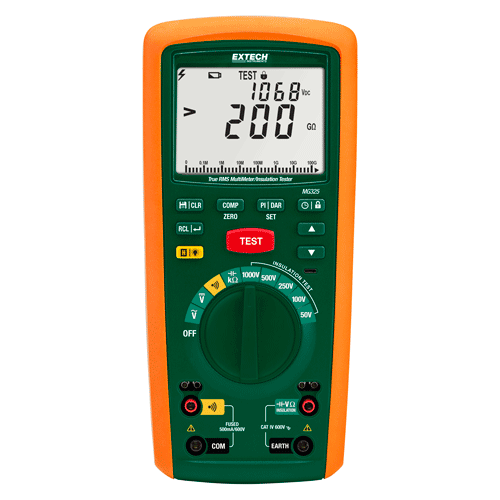

200GOhm/1000V Insulation Tester/DMM with Datalogging

Combines a 200GΩ/1000V high range Insulation Tester with a full-featured True RMS MultiMeter in a single, compact instrument. CAT IV safety rating ensures the highest level of protection.

Digital Insulation Tester Features:

• Test Voltages of 250V, 500V, and 1000V
• Measure Insulation Resistance to 5.5GOhm (autoranging)
• AC Voltage measurement from 30 to 600V
• Polarization Index measurement (PI)
• Dielectric Absorption Ratio measurement (DAR)
• 10MOhm internal resistance test
• Low Resistance measurement with Zero function
• Continuity beeper
• Large 2000 count dual display with backlight
• High voltage and overload indication
• Auto-discharge and voltage output warning functions
• Low battery indication
• Complete with test leads, alligator clips, 6 AA batteries, hard cover, and soft carrying case

Specifications Range                               Range
Insulation Resistance                    50MΩ, 100MΩ, 200MΩ,500MΩ, 2000MΩ
                                                         1GΩ, 10GΩ, 20GΩ, 50GΩ, 100GΩ, 200GΩ
Insulation Test Voltages              50V, 100V, 250V, 500V, 1000V
AC/DC Voltage                               600V
Leakage Current                           2000µA
Resistance                                      10MΩ
Low Resistance                              100Ω
Capacitance                                    500µF
Frequency                                       1kHZ
Continuity (audible)                       Yes
Dimensions/ Weight                      8.9 x 4.1 x 2.3" (225 x 103 x 59mm)/ 1.5lbs (0.7kg
