10" Flexible Clamp Adaptor for Multimeters/Clamp-On Meters

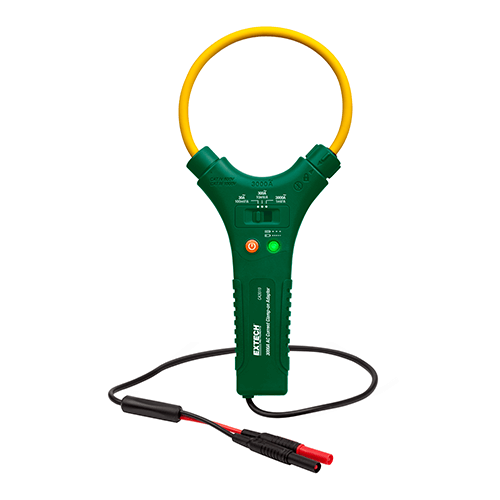

The CA3010 is a 3000A AC flex clamp-on adaptor for multimeters and clamp on meters with standard sized banana plugs. The CA3010 is a 10 inch flexible clamp capable of measuring AC Currents up to 3000A. Complete with built-in flex clamp cable, 6.6ft (2m) lead with banana plugs and two AAA batteries. UL listed with a CAT IV 600V safety rating.

3000A AC Flex Clamp-on Adaptor Features:

• Measure AC Current up to 3000A
• Flexible 10" (25.4cm) clamp jaw easily wraps around bus bars and cable bundles
• 7.5mm cable diameter fits into tight spaces and around large conductors
• Measures AC Current in three ranges
• Easy twist clamp cable closure to Lock or Open
• Compatible with most multimeters and clamp meters with standard sized banana plug inputs
• Complete with built-in flex clamp cable, 6.6ft (2m) lead with banana plugs, and two AAA batteries

Specifications                                Range
AC Current Ranges                  30.00A (100mV per Amp output); 300.0A (10mV per Amp output); 3000A

                                                  (1mV      per Amp output)
Max Resolution                       0.01A
Basic Accuracy                         ±3%FS (45 to 500Hz)
Flex Cable Diameter                0.3" (7.5mm)
Flex Cable Tip Diameter          0.51" (13mm)
Dimensions                             11 x 4.7 x 1" (280 x 120 x 25mm);
Weight                                      6oz (170g); Model CA3018: 7.1oz (200g)
